Toyota Land Cruiser 100
Diesel, immobox
Original transponder |
TIRIS 4C |
Allowed transponder |
TIRIS 4C |
Data location |
93C56 |
No. of keys |
3 |
|
Immo location: behind the dashboard

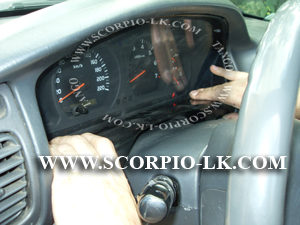

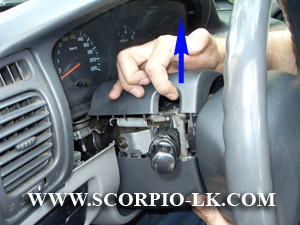

grasp the plastic panel with hands
|
|

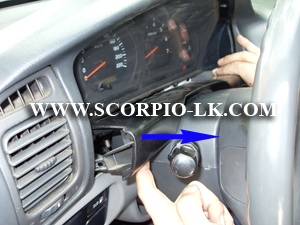

...and pull out it
|
|

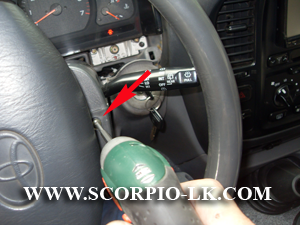

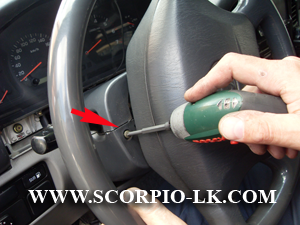

unscrew 2 screws
|
|
|
|
remove the decorative cover
|
|

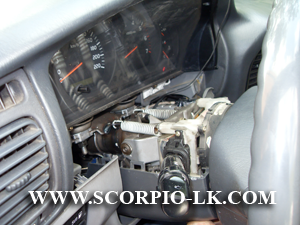

the cover removed
|
|
these 2 hexagon screws lock two wire plugs
Unscrew the screws until it "clicks". Do not remove screw fully. Instead, only weaken connection.
|
|
dashboard fixed with 4 screws

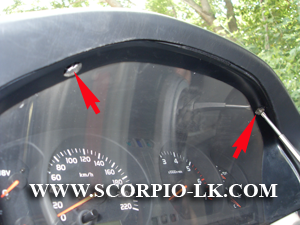

unscrew the upper screws
|
|

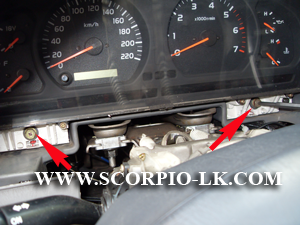

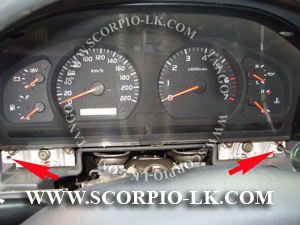

unscrew the bottom screws
|
|

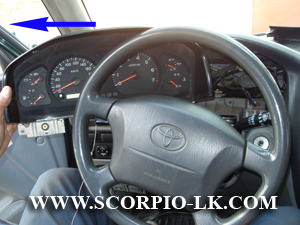

pull out the dashboard on the left
|
|

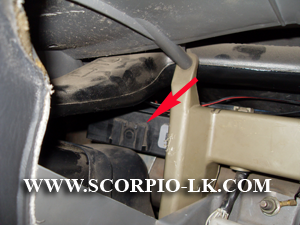

immo location |
