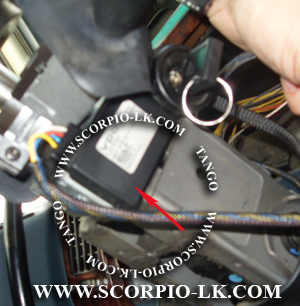

Immo location:
around the lock cylinder
|
Dismounting of the immobox
|

|

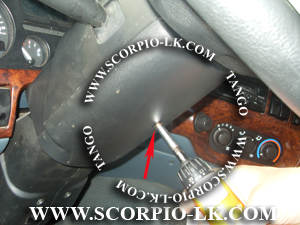

unscrew the screw
|

|

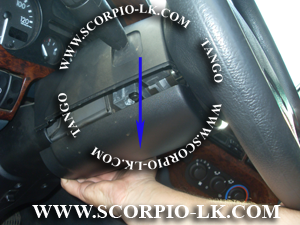

and take off the bottom cover
|

|

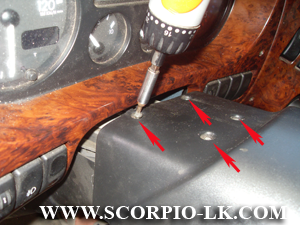

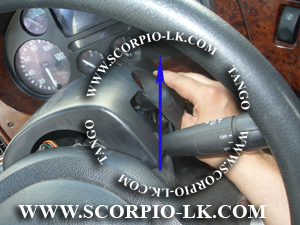

unscrew 4 screws
|

|
and take off the upper cover
|

|

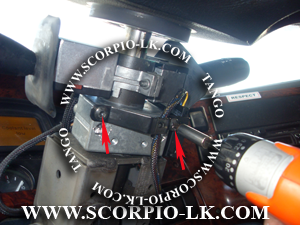

unscrew 2 bolts
|

|

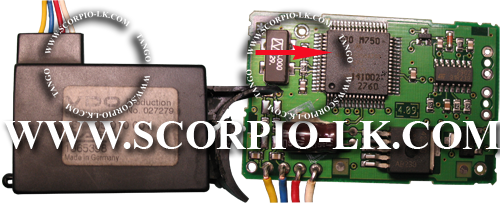

and dismount the immobox
|
The immo connector is behind of the dashboard
|
Dismounting of the dashboard
|

|

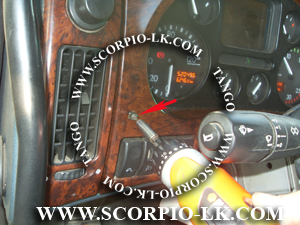

unscrew the screw
|

|
unscrew the screw
|

|

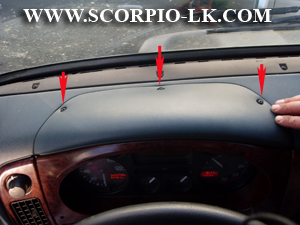

unscrew 3 screws
|

|

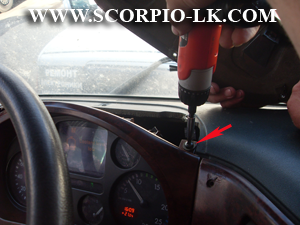

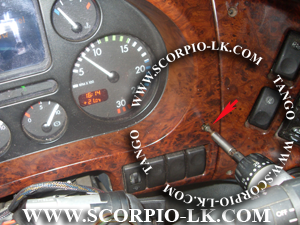

unscrew the screw
|

|

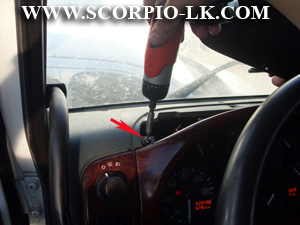

unscrew the screw
and take off the dashboard.
|

|
space behind the dashboard

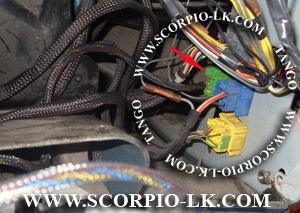

unplug the GREEN connector
|
