Chrysler 300C 2005
Original transponder |
PCF7941 |
Allowed transponder |
PCF7936, PCF7941 |
Data location |
MC9S12DC128B (0L85D) |
No. of keys |
8 |
Note: Currently remote functions are not supported. If PCF7941 programmed, the buttons are inactive. To initialize the remote control use diagnostic tools.
|

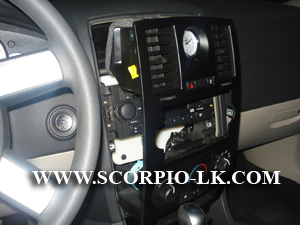

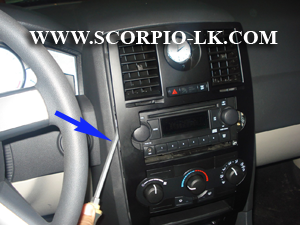

Remove the plastic cover of the central console using a screwdriver
|
|
|
|

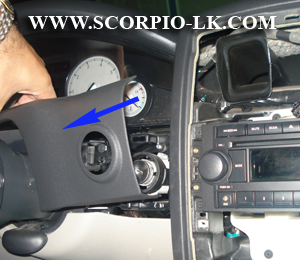

Remove the plastic cover around the ignition lock
|
|

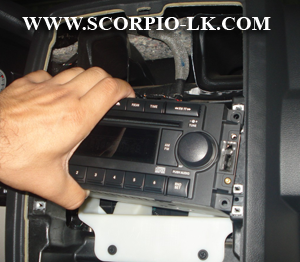

Remove the radio unit
|
|

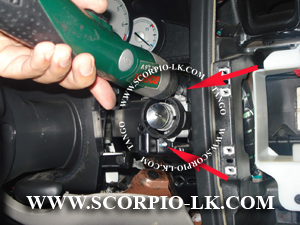

Remove 2 nuts
|
|

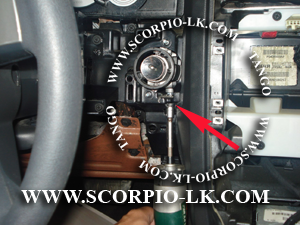

Remove 1 nut
|
|

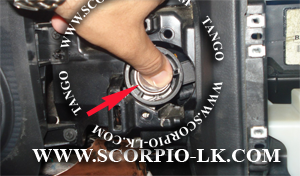

Push the lock cylinder
|
|

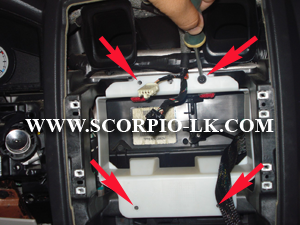

Unscrew 4 screws
|
|

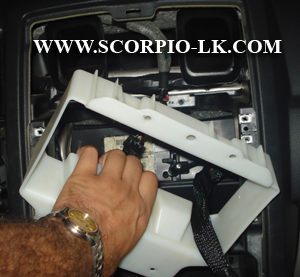

Dismount the plastic panel
|
|

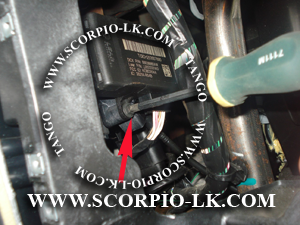

Unscrew 1 screw
|
|

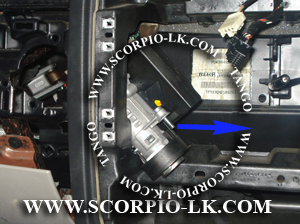

Pull the ignition lock unit on the right
|
|

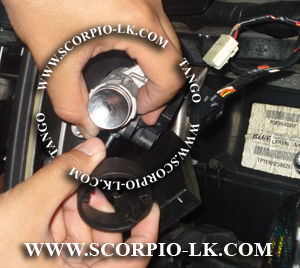

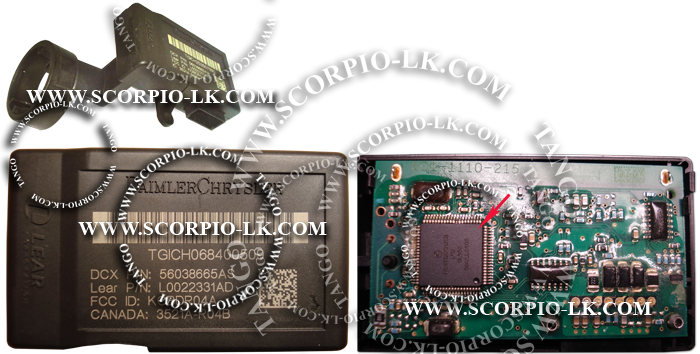

Remove the electronic part from the lock cylinder
|
