IMMO-1, IMMO-2, IMMO2 - II
Opel Zafira
|
Immo location: around the lock cylinder

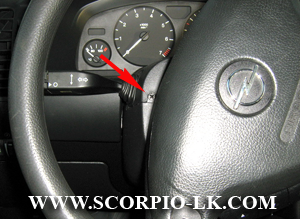

unscrew 1 screw
|
|

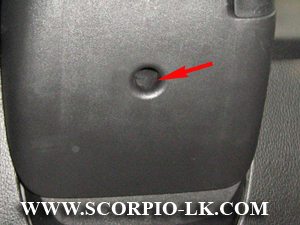

remove the plastic cap
|
|

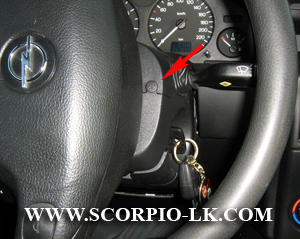

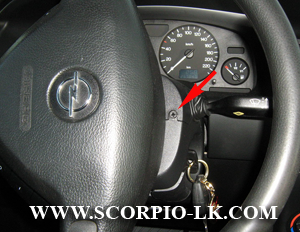

unscrew the screw
|
|
remove the plastic cap
|
|

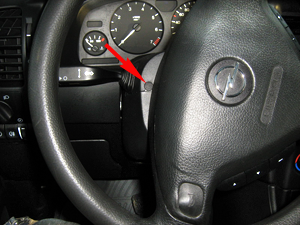

unscrew the screw
|
|

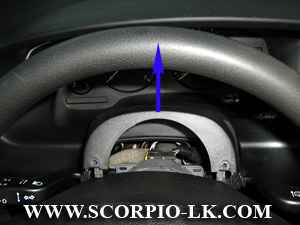

take off the plastic cover pulling it upward
|
|

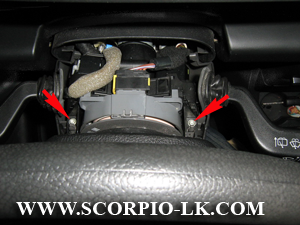

unscrew 2 screws
|
|

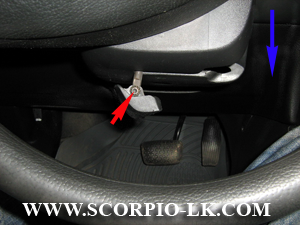

unscrew the screw of the handle and remove it
dismount the bottom plastic cover
|
|

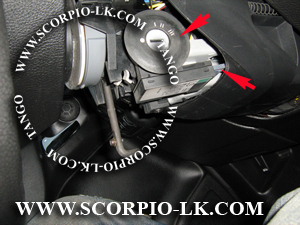

remove the rubber ring and disconnect the immo plug
|
|
Removing of the lock cylinder

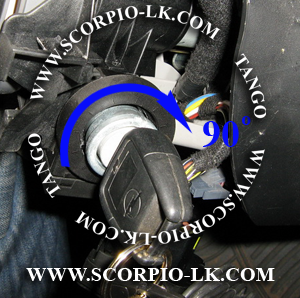

turn the key
|
|

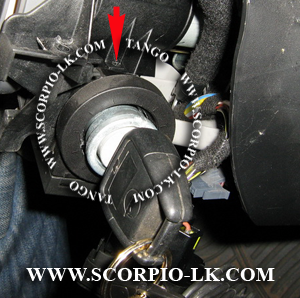

the lock cylinder is blocked with a latching mechanism find out a hole with 5 mm diameter as shown on the picture using a little screwdriver press the latch
|
|

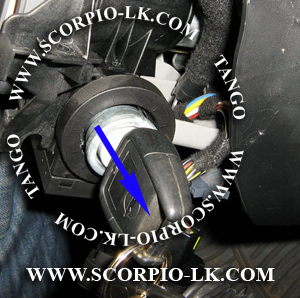

pull out the key together with the lock cylinder

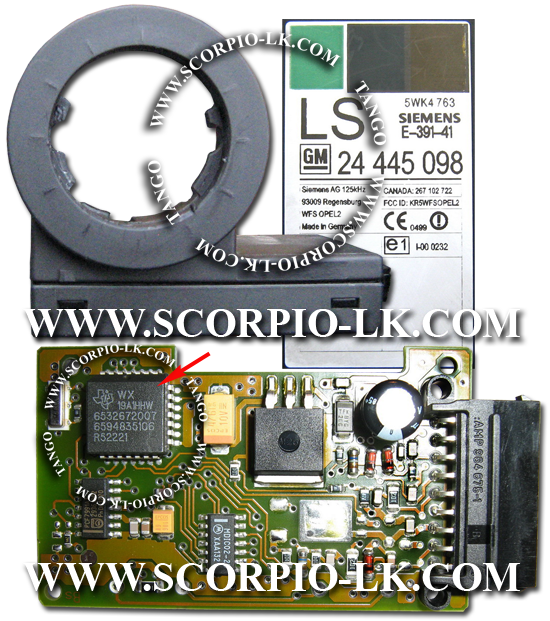

dismount the immo pulling it out |
