E65

Removing of the plastic cover in front of the dashboard.

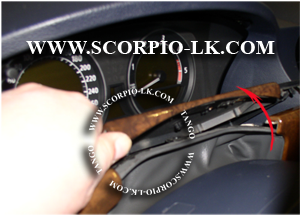

pull up the plastic cover

and dismount it.

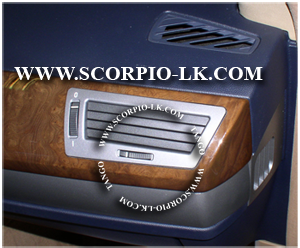

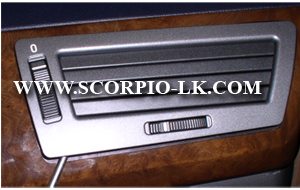

Removing of the air grid.

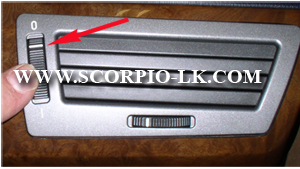

slide the wheel in the "0" position

hook the air grid with a screwdriver

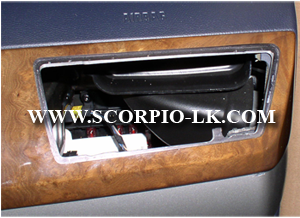

remove the air grid

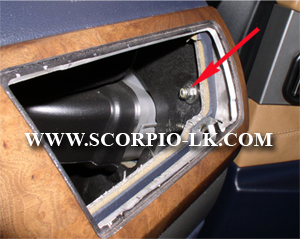

remove the nut

Removing of the plastic grid in front of the central display.

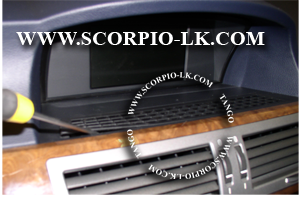

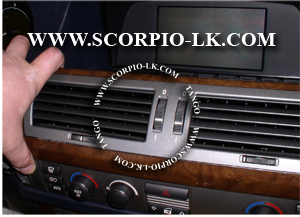

hook the grid with a screwdriver

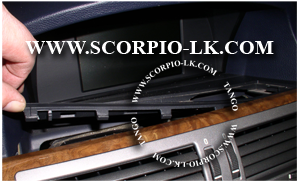

take off the grid and the plastic cover

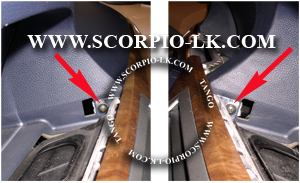

remove 2 screws

Removing of the central decorative panel.

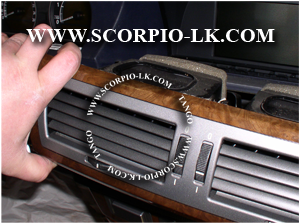

pull the left side of the decorative panel

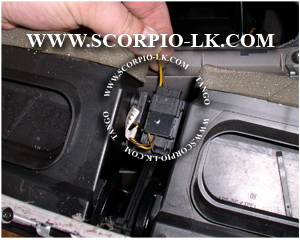

disconnect the wire plug

Dismounting of a CAS.

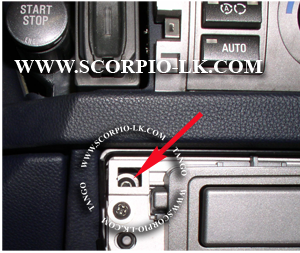

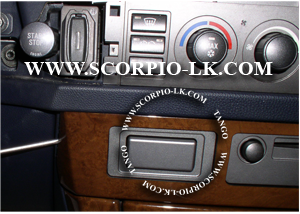

unscrew 2 screws and remove the plastic cover around the key slot

hook the decorative plastic panel with a screwdriver and remove it

unscrew 1 screw

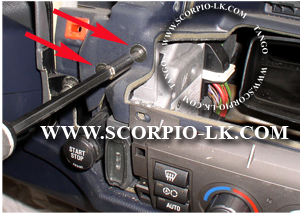

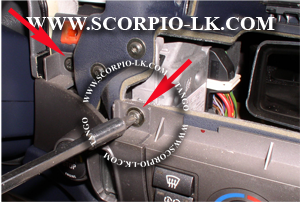

unscrew 2 screws

disconnect the wire plug

push the CAS and rotate it counterclockwise

pull out the CAS
