Toyota Lexus ES300
Original transponder
|
TIRIS 4C
|
Allowed transponder
|
TIRIS 4C
|
Data location
|
93C56
|
No. of keys
|
3
|
Target ECU is behind of the glove box.

Access to ECU

|

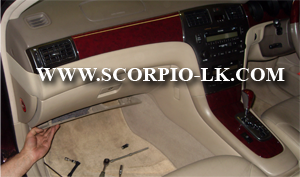

Click off the panel under the glove box
|

|

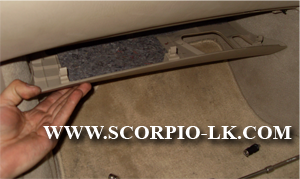

... and lower it
|

|

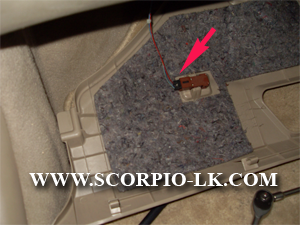

Disconnect the plug
|

|

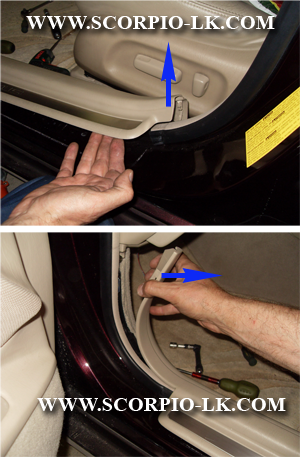

Remove the plastic threshold
|

|

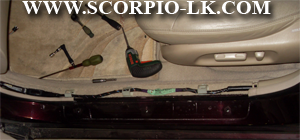

Threshold removed
|

|

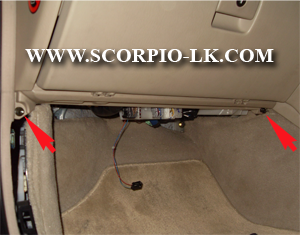

Unscrew 2 screws under the glove box
|

|

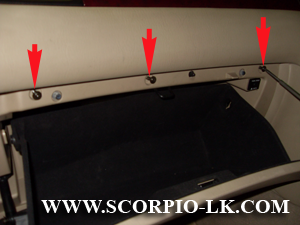

Unscrew 3 screws
|

|

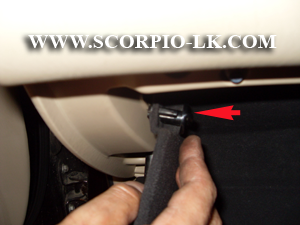

Remove 2 clamps

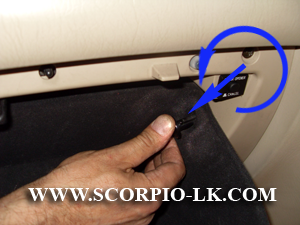

To remove the clamp rotate it counterclockwise and pull out
|

|
|

|

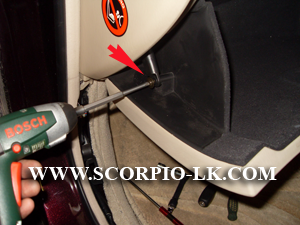

Unscrew the screw
|

|

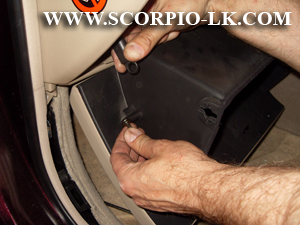

... and unplug the rod
|

|
Remove the glove box
|

|
Target ECU
|

|

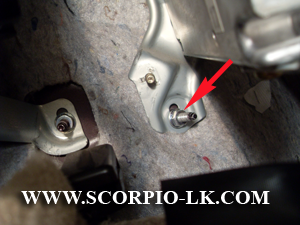

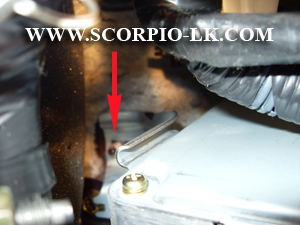

Remove the nut
|

|
|
|
