Hyundai i30
Original transponder |
PCF7936 |
Allowed transponder |
PCF7936 |
Data location |
95160 |
No. of keys |
4 |
|

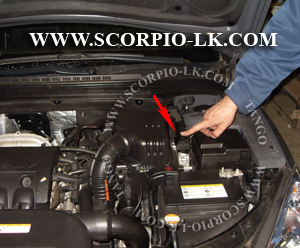

ECU location: engine compartment, left side
|
|

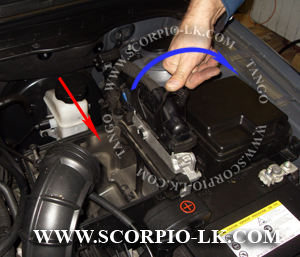

RED pointer: remove the air filter cover BLUE pointer: pull up and rotate the clamp of the ECU's plug. Disconnect it.
|
|

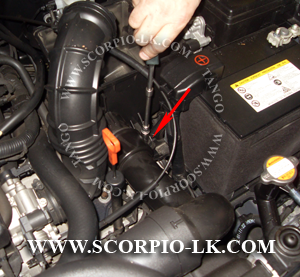

remove one screw bolt
|
|

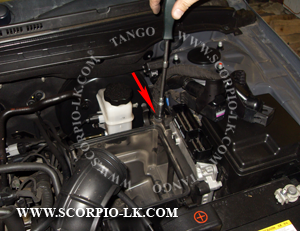

this bolt fixes the air filter; remove it
|
|

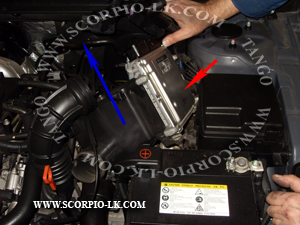

BLUE pointer: pull up the air filter RED pointer: ECU is fixed to the air filter wall |
